MIL-DTL-3928/10F
Position 1. (De-energized or failsafe position),
C connects to NC connector.
Position 2. (Energized position),
C connects to NO connector.
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
.32
---
8.1
---
J
.213 dia
.193 dia
5.41 dia
4.90 dia
B
.38
.32
9.7
8.1
K
.880
.860
22.35
21.84
C
.73
.67
18.5
17.0
L
.895
.875
22.73
22.23
D
2.2
---
56
---
M
1.780
1.760
45.21
44.70
E
.210
.190
5.33
4.83
N
2.71
---
68.8
---
F
.63
.57
16.0
14.5
P
.27
.21
6.9
5.3
G
.452
.432
11.48
10.97
Q
.56
.50
14.2
12.7
H
.895
.875
22.73
22.23
R
1.09
---
27.7
---
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (in millimeters) are given for general information only (1.00 inch = 25.4 mm).
3. Corners of case may be round or square.
4. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (±0.8 mm) for two place decimals.

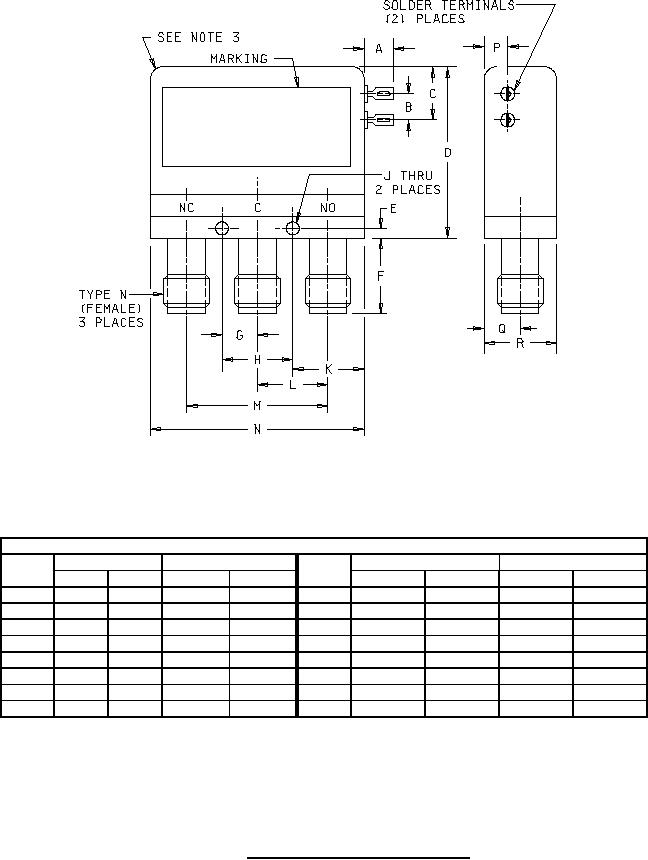

FIGURE 2. PINs M3928/10-04 and M3928/10-09.
