MIL-DTL-24044C
4.6.5 High potential. The specified 60-cycle voltage (see 3.1) shall be applied between the inner conductor and
the outer conductor of the line with the insulator bullet assembly in the line between two flanges. The voltage shall be
applied at approximately 500 volts per second until the rated test voltage is reached or breakdown occurs. The rated
voltage shall be applied for 1 minute. The test shall be performed at a temperature of approximately 23°C and at a
pressure of approximately 30 inches of mercury absolute. The relative humidity shall be no greater than
50 percent. When facilities are not available for meeting these test conditions, the test may be conducted at the
prevailing atmospheric conditions. In case of dispute, retest shall be made under the test conditions specified herein,
either at the manufacturer s plant or at a laboratory satisfactory to the agency concerned.

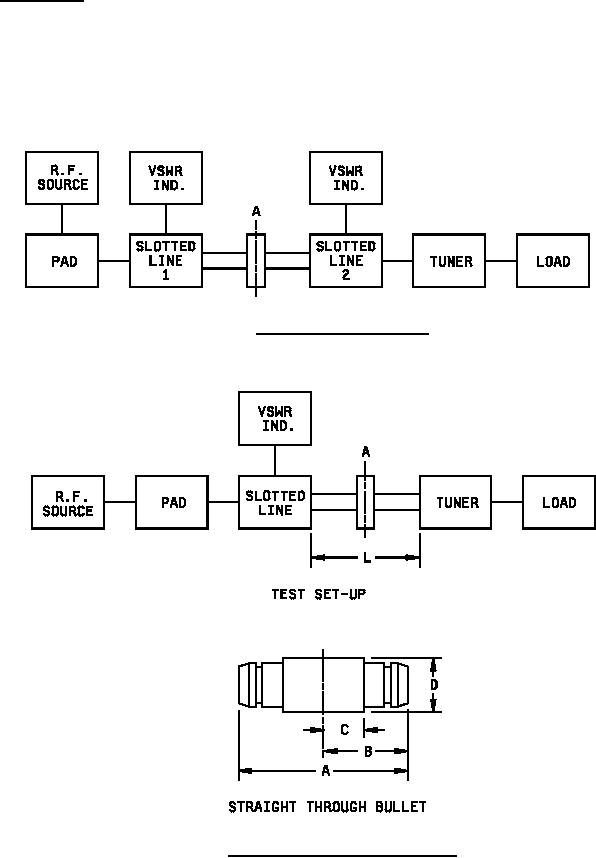

FIGURE 1. Method of measuring VSWR.
FIGURE 2. Alternate method of measuring VSWR.
