MIL-DTL-3928/15G
INCH-POUND
MIL-DTL-3928/15G
4 April 2011
SUPERSEDING
MIL-DTL-3928/15F
12 August 2005
DETAIL SPECIFICATION SHEET
SWITCHES, RADIO FREQUENCY TRANSMISSION LINE
(COAXIAL) (ELECTRICALLY OPERATED)
(OPTIONAL VENTING FOR SPACE APPLICATIONS) CLASS 5, 1P2T
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the switch described herein
shall consist of this specification sheet and MIL-DTL-3928.
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
.230
.210
5.84
5.33
G
.103
.083
2.62
2.11
B
.450
.430
11.43
10.92
H
1.2
---
30
---
C
.890
.870
22.61
22.10
J
.35
---
8.9
---
D
1.5
---
38
---
K
.23
.17
5.8
4.3
E
.35
---
8.9
---
L
.570
---
14.50
---
F
.28
.22
7.1
5.6
M
.130 dia
.110 dia
3.30 dia
2.79 dia

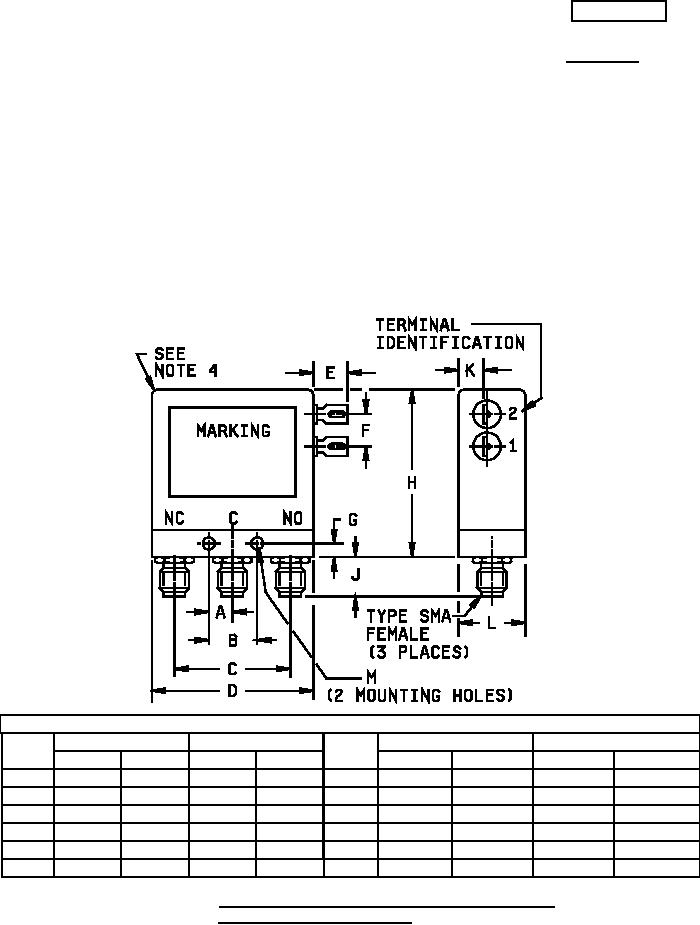

FIGURE 1. Switch configuration and schematic, PINs M3928/15-01,
M3928/15-02, and M3928/15-12.
AMSC N/A
FSC 5985
