MIL-DTL-3928/15G
(PIN M3928/15-03 does not have indicator circuit provisions and, therefore, does not have terminals 2, 4 and 5.)
Position 1. (De-energized or failsafe position),
C connects to NC connector,
NO is open circuit
Position 2. (Energized position),
C connects to NO connector,
NC is open circuit
Dimensions
Inches
Millimeters
Inches
Millimeters
Lette
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
.35
---
8.9
---
G
1.37
1.31
34.8
33.3
B
1.18
---
30.0
---
H
.20
.14
5.1
3.6
C
.34
.28
8.6
7.1
J
.103 dia
.083 dia
2.62 dia
2.11 dia
D
.11
.05
2.8
1.3
K
.28
.22
7.1
5.6
E
.47
.41
11.9
10.4
L
.53
.47
13.5
11.9
F
1.22
1.16
31.0
29.5
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (± 0.8 mm) for two place decimals.
4. Round corners of case may be squared.

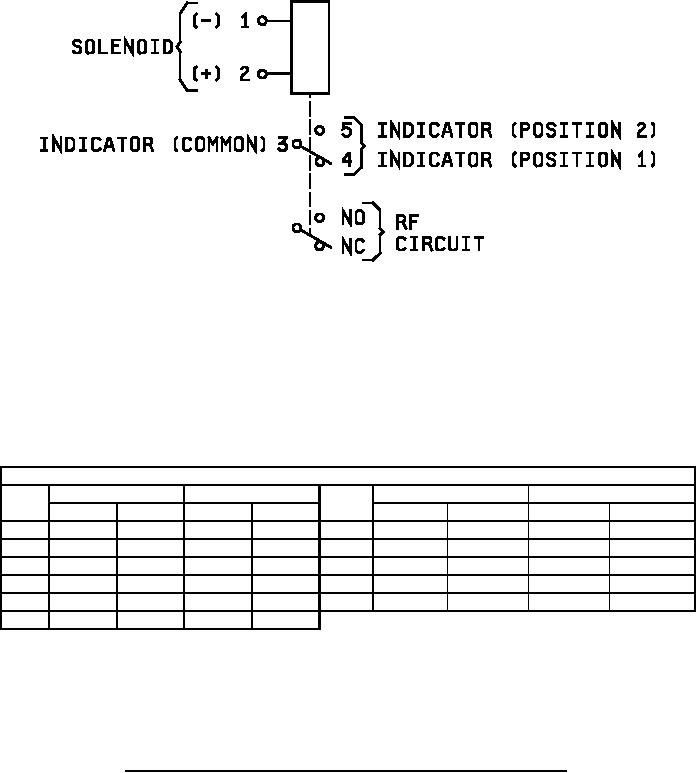

FIGURE 2. Switch configuration and schematic, PINs M3928/15-03 and M3928/15-04 - Continued.
