MIL-DTL-3928/15G

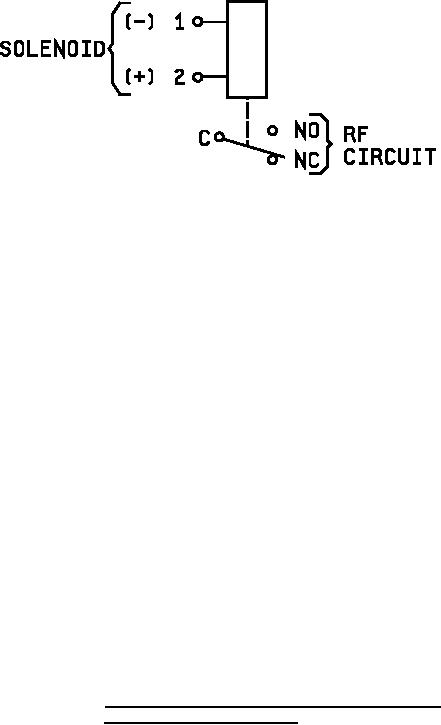

Position 1. (Deenergized or failsafe position),
C connects to NC connector.
NO is open circuit.
Position 2. (Engerized position),
C connects to NO connector,
NC is open circuit.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (± 0.8 mm) for two place decimals.
4. Round corners of case may be squared.
FIGURE 1. Switch configuration and schematic, PINs M3928/15-01,
M3928/15-02, and M3928/15-12 - Continued.
2
