MIL-DTL-3928/15G
Position 1. (De-energized or failsafe position),
C connects to NC connector.
NO is open circuit
Position 2. (Energized position).
C connects to NO connector.
NC is open circuit

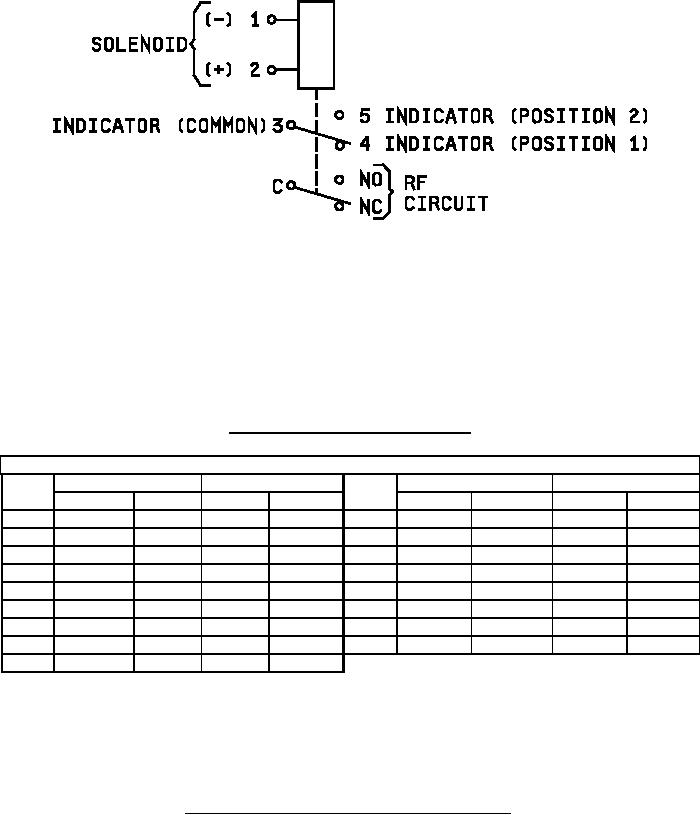

SCHEMATIC (SHOWN IN POSITION 1)
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
.28
.22
7.1
5.6
K
.450
.430
11.4
10.9
B
.20
.14
5.1
3.6
L
.890
.870
22.6
22.1
C
.20
.14
5.1
3.6
M
1.43
1.37
36.3
34.8
D
.29
.23
7.4
5.8
N
.35
---
8.9
---
E
.095
---
2.41
---
P
1.67
1.61
42.4
40.9
F
.130 dia
.110 dia
3.30 dia
2.79 dia
Q
.31
---
7.9
---
G
.230
.210
5.84
5.33
R
.31
.25
7.9
6.4
H
.450
.430
11.4
10.9
S
.59
.53
15.0
13.5
J
.73
.67
18.5
17.0
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (± 0.8 mm) for two place decimals.
4. Round corners of case may be squared.
FIGURE 3. Switch configuration and schematic, PIN M3928/15-05 - Continued.
