MIL-DTL-3928/15G
NOTES:
1. Dimensions are in inches. Metric equivalents may be determined using 1.00 inch = 25.4 mm.
2. Unless otherwise specified, tolerances are ± .010 for three place decimals; ± .020 for two place decimals.

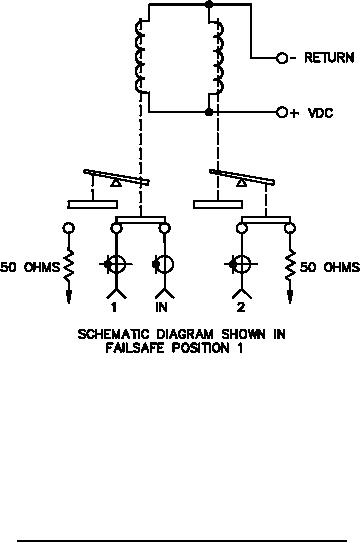

FIGURE 15. Switch configuration and schematic, PIN M3928/15-20 - Continued.
