MIL-DTL-3928/18D
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
2.28
2.22
57.9
56.4
F
.20
.14
5.1
3.6
B
.187 dia
.172 dia
4.75 dia
4.37 dia
G
.27
---
6.9
---
C
2.03 dia
1.97 dia
51.6 dia
50.0 dia
H
1.805
1.795
45.8
45.6
D
.53
.47
13.5
11.9
J
1.63 dia
1.57 dia
41.4 dia
39.9 dia
E
2.46
2.40
62.5
61.0
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (±0.8 mm) for two place decimals.

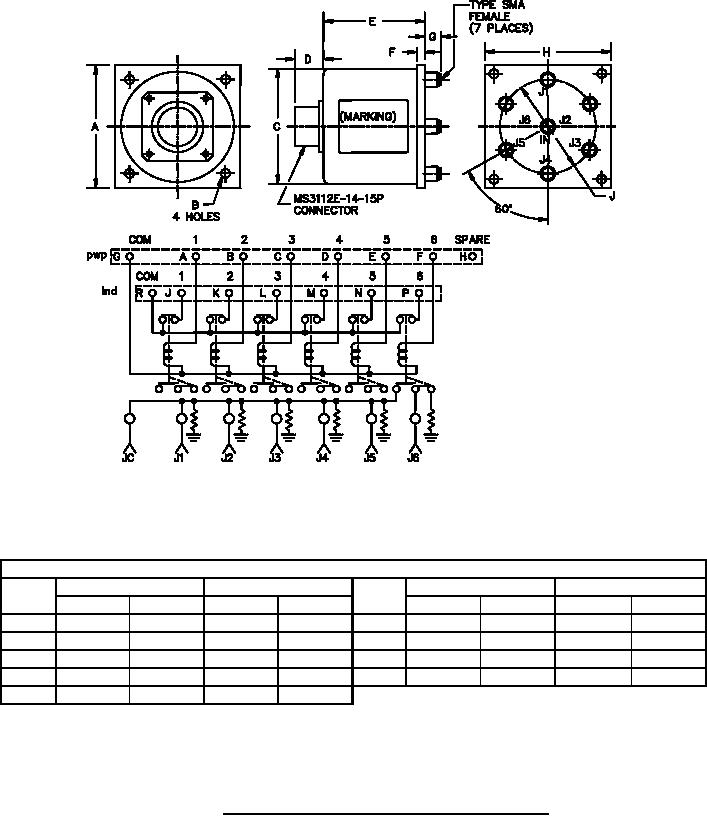

FIGURE 6. Switch configuration and schematic, PIN M3928/18-06.
7
