MIL-DTL-49295C
NOTES:
1. Test to be conducted with antenna mounted or with equivalent antenna dead weight.
2. Loads to be applied at guy levels and midway between guy levels and bisecting adjacent guys.
3. Indicated loads simulate a 90 mph wind velocity.
4. Weights to be calibrated to develop forces indicated at mast.

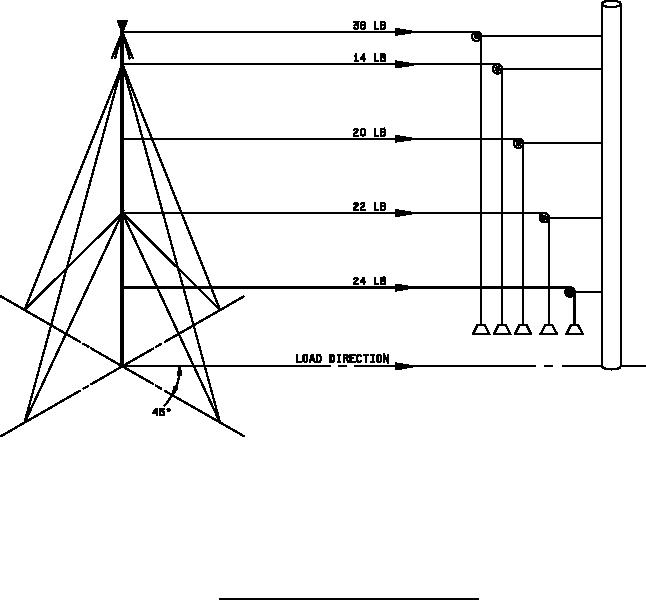

FIGURE 2. Antenna group OE-254/GRC wind load test.
14
