MIL-DTL-3928/15G
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
1.06
1.00
26.9
25.4
K
.630
.610
16.00
15.49
B
.28
.22
7.1
5.6
L
.450
.430
11.43
10.92
C
.28
.22
7.1
5.6
M
.890
.870
22.61
22.10
D
.35
---
8.9
---
N
1.28
1.22
32.5
31.0
E
1.50
---
38.1
---
P
.19
.13
4.8
3.3
F
.31
---
7.9
---
Q
.20
.14
5.1
3.6
G
.126 dia
.106 dia
3.20 dia
2.69 dia
R
.28
.22
7.1
5.6
H
.230
.210
5.84
5.33
S
.53
.47
13.5
11.9
J
.450
.430
11.43
10.92
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (± 0.8 mm) for two place decimals.
4. Round corners of case may be squared.

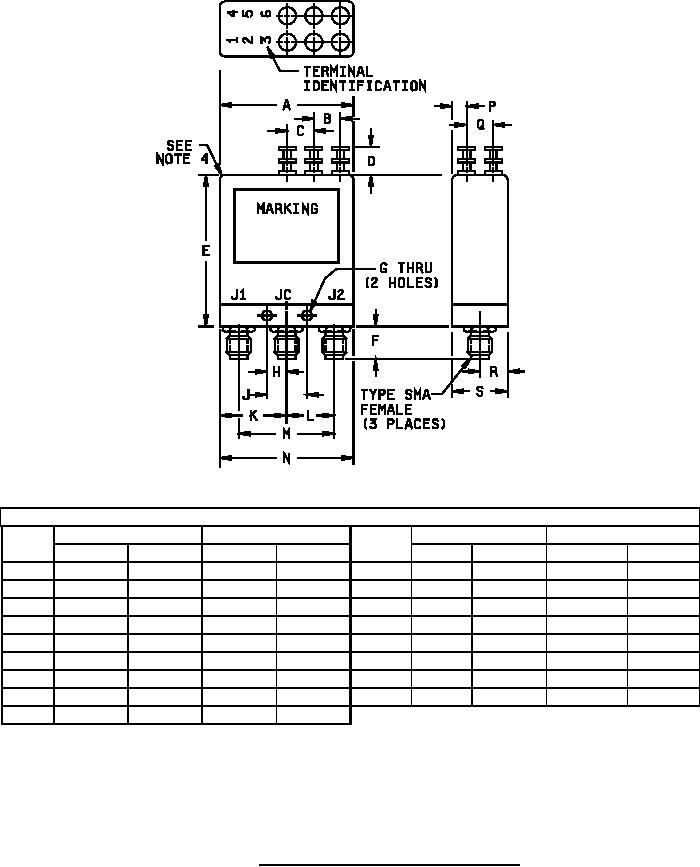

FIGURE 5A. Alternate construction for PIN M3928/15-08.
