MIL-DTL-3928/15G
Position 1. (De-energized or failsafe position),
C connects to NC connector.
NO is open circuit
Position 2. (Energized position).
C connects to NO connector.
NC is open circuit
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
1.15
1.09
29.2
27.7
J
.450
.430
11.43
10.92
B
.28
.22
7.1
5.6
K
.890
.870
22.61
22.10
C
.19
.13
4.8
3.3
L
1.37
1.31
34.8
33.3
D
.20
.14
5.1
3.6
M
.35
---
8.9
---
E
.103
.083
2.62
2.11
N
1.43
1.37
36.3
34.8
F
.230
.210
5.84
5.33
P
.31
---
7.9
---
G
.450
.430
11.43
10.92
Q
.28
.22
7.1
5.6
H
.680
.660
17.27
16.76
R
.53
.47
13.5
11.9
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerances are ± .010 (± 0.25 mm) for three place decimals and
± .03 (± 0.8 mm) for two place decimals.
4. Round corners of case may be squared.

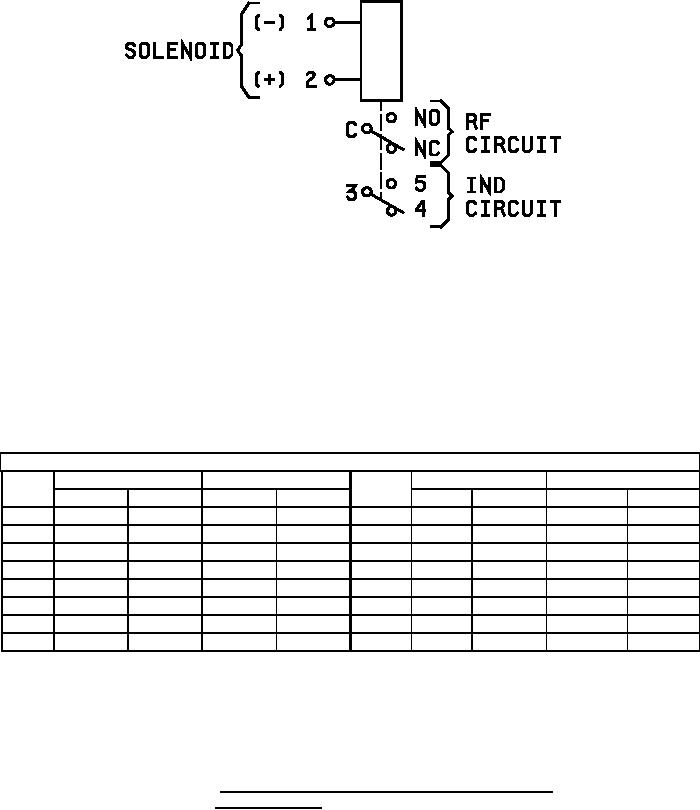

FIGURE 7. Switch configuration and schematic, PINs M3928/15-10
and M3928/15-13 - Continued.
