MIL-DTL-55041F

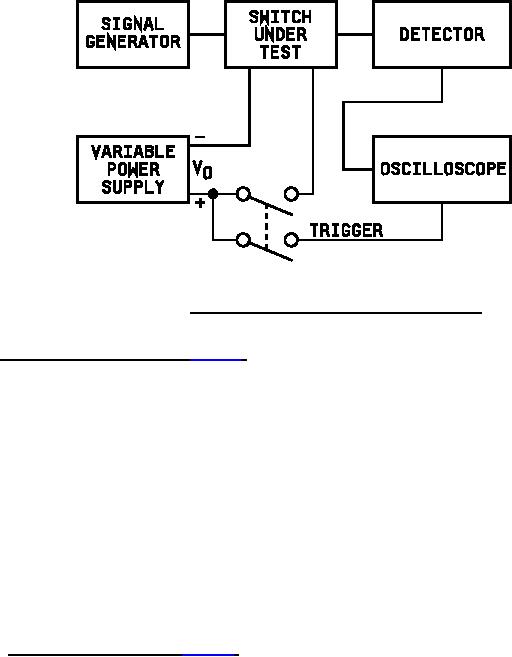

FIGURE 3. Rotor motion delay and switching time test setup.
4.7.9 Dielectric withstanding voltage (see 3.11). Switches shall be tested in accordance with method 301 of
MIL-STD-202. The following details apply:
a.
Magnitude of test voltage:
(1)
AC operated switches: 500 volts RMS plus twice the nominal operating voltage.
(2)
DC operated switches: 500 volts dc plus twice the nominal operating voltage.
b.
Points of application of test voltage:
(1)
Indicator and interlock circuit: The test voltage shall be applied in turn between each separate
position indicator and interlock circuit terminal and the switch housing (ground). All open indicator
and interlock circuit terminals shall be grounded to the switch housing (ground) for this test.
(2)
Actuator circuit: The test voltage shall be applied between the actuator terminals and the switch
housing (ground). All actuator terminals shall be connected together for this test so that any RFI
noise suppression devices are not damaged.
4.7.10 Transient interference (RFI) (see 3.12). Transient interference emanating from the switch shall be
measured on the power lines using the test procedure of figure 4.
