MIL-DTL-55041 Switches, Waveguide, General Specification ForThis specification covers the general requirements for waveguide switches, either manually or electromechanically operated, designed to connect and disconnect one or more waveguide sections to other waveguide sections. Detail requirements and specific characteristics of switches are be specified in the applicable specification sheet.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-55041F

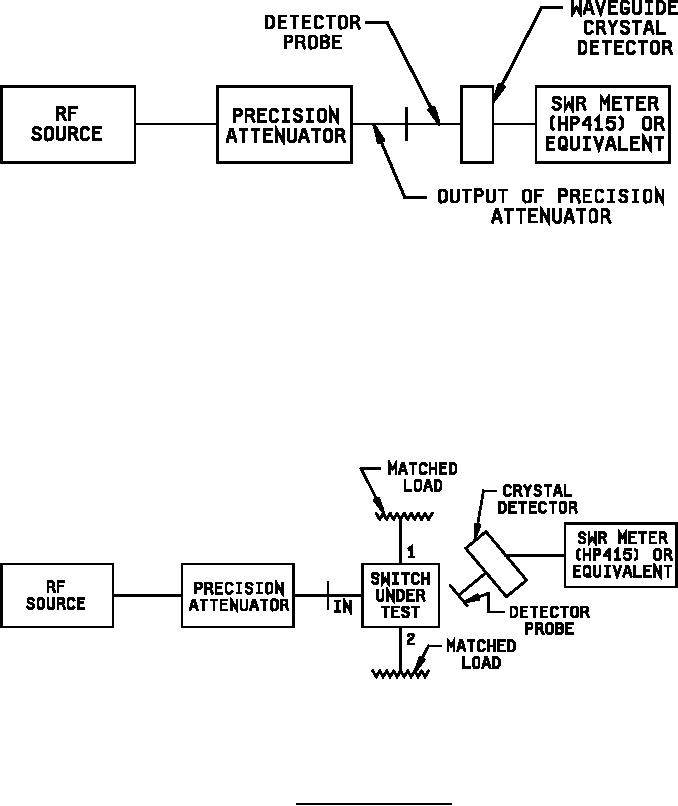

Test setup for calibration for RF leakage detector. The calibration sensitivity of the test position shall be 90 dB
relative to the power output of the RF source.
FIGURE 7. Test setup for RF leakage.
17
