MIL-DTL-55041F
NOTES:
1. Oscilloscope or transient voltmeter should be of the memory storage type and be capable of detecting and
measuring.
Magnitude:
± 1 volt to ± 1,000 volts.
Width:
50 nanoseconds to 100 milliseconds.
Pulse repetition frequency:
Single shot to 500 pps.
2. Use of a low noise mercury switch is recommended to activate the waveguide switch.
Procedure:
a. Activate switch at least 20 times.
b. Highest reading obtained is to be recorded for both make and break.

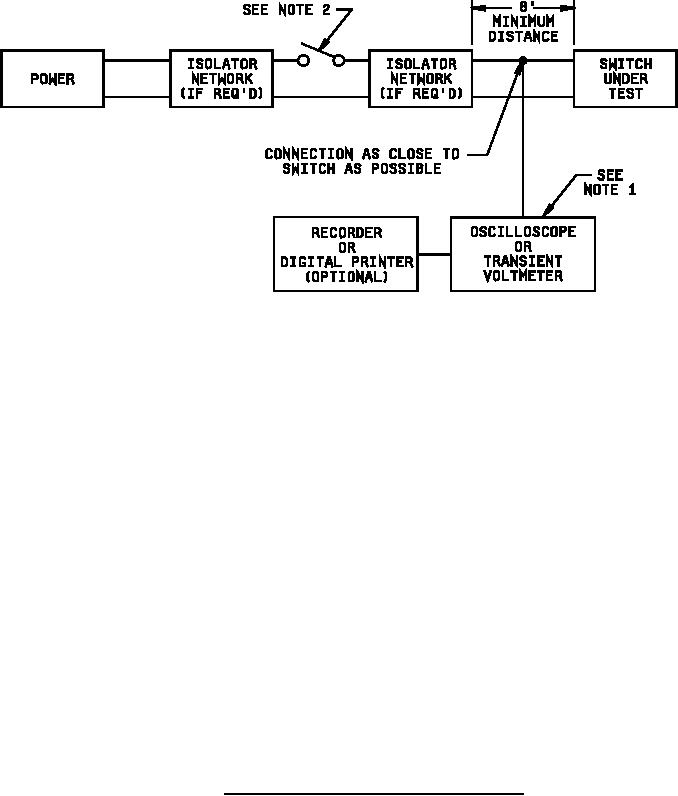

FIGURE 4. RFI transient test arrangement and test procedure.
