MIL-DTL-55041 Switches, Waveguide, General Specification ForThis specification covers the general requirements for waveguide switches, either manually or electromechanically operated, designed to connect and disconnect one or more waveguide sections to other waveguide sections. Detail requirements and specific characteristics of switches are be specified in the applicable specification sheet.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-55041F

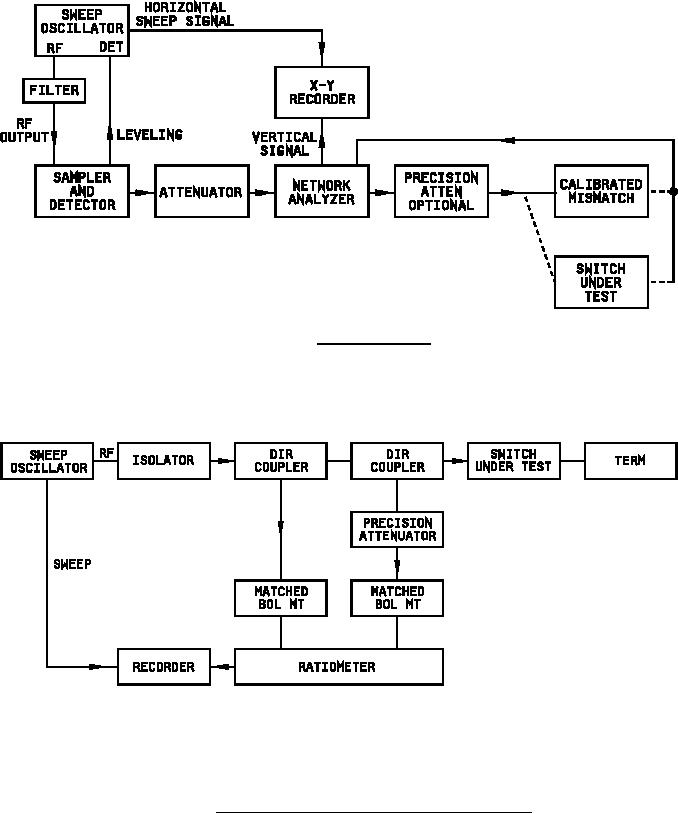

FIGURE 5. Isolation test setup.
FIGURE 6. Voltage standing wave ratio measurement test setup.
